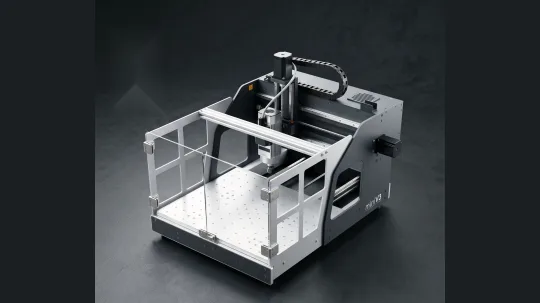

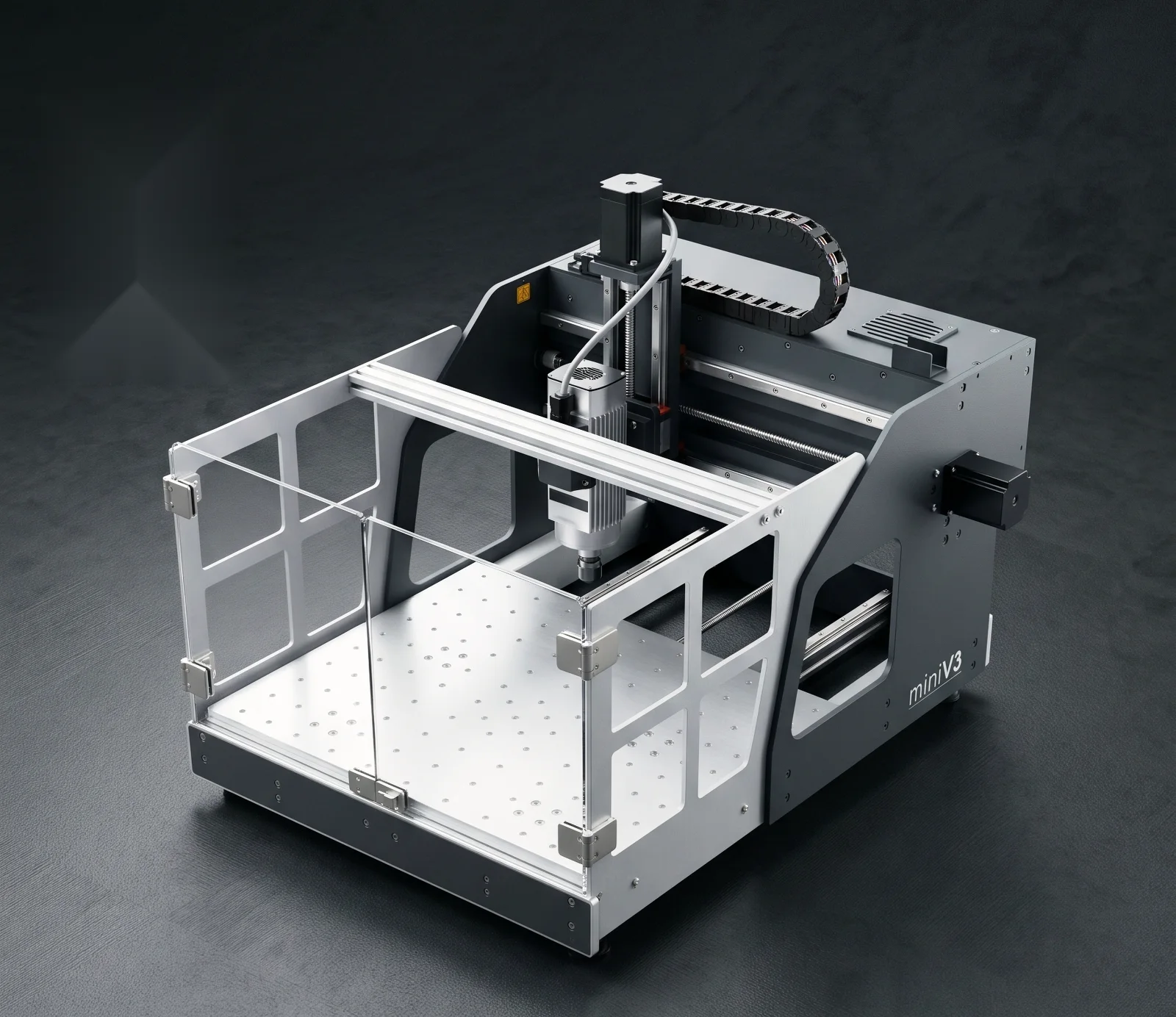

Raptorex Mini V3
All the advantages of the Mini V2, plus a larger work area and a bigger spindle motor. With its 400×400×100 mm work area and upgraded 500W spindle, you can machine larger parts faster.
Our Mini V3 model is designed for those who outgrow the Mini V2 table.
Our Mini V3 model is up to 3 times more powerful than the Mini V2.
The Mini V3 is sold together with its control unit. No need to buy one separately.
Free Shipping
1-Year Warranty
Delivery Within 1 Month
Operating Voltage220VAC
Spindle500W / Single-phase
MotorsNema 23 Step
Step DriverDM556
Table Size500 × 400 × 100 mm
Work Area400 × 400 × 100 mm
X,Y,Z Speed2500 mm/min
Z Axis100 mm
Power Consumption~1200W
Mechanics15 mm Rail + Shaft
CompatibilityGRBL
ConnectionUSB / WiFi
Net Weight53 kg
Boxed Weight~60 kg
External Dimensions55 × 85 × 55 cm
Precision (Tolerance)0.07 mm
COMING SOON

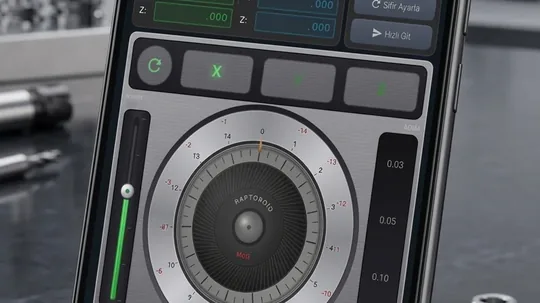

The Raptorex control unit is specially designed to help you get the best performance out of our machines. Inside, it runs our own Raptorex control boards — designed and manufactured by us — for 100% compatibility and full performance. It is built entirely by our own engineers and is 100% locally made. The tablets supplied with the software are Samsung, Honor or Lenovo — brands we trust for quality on the market.
